Analog controlled 0-10V  Dimmers                Go here for PWM DC voltage and LED dimmers

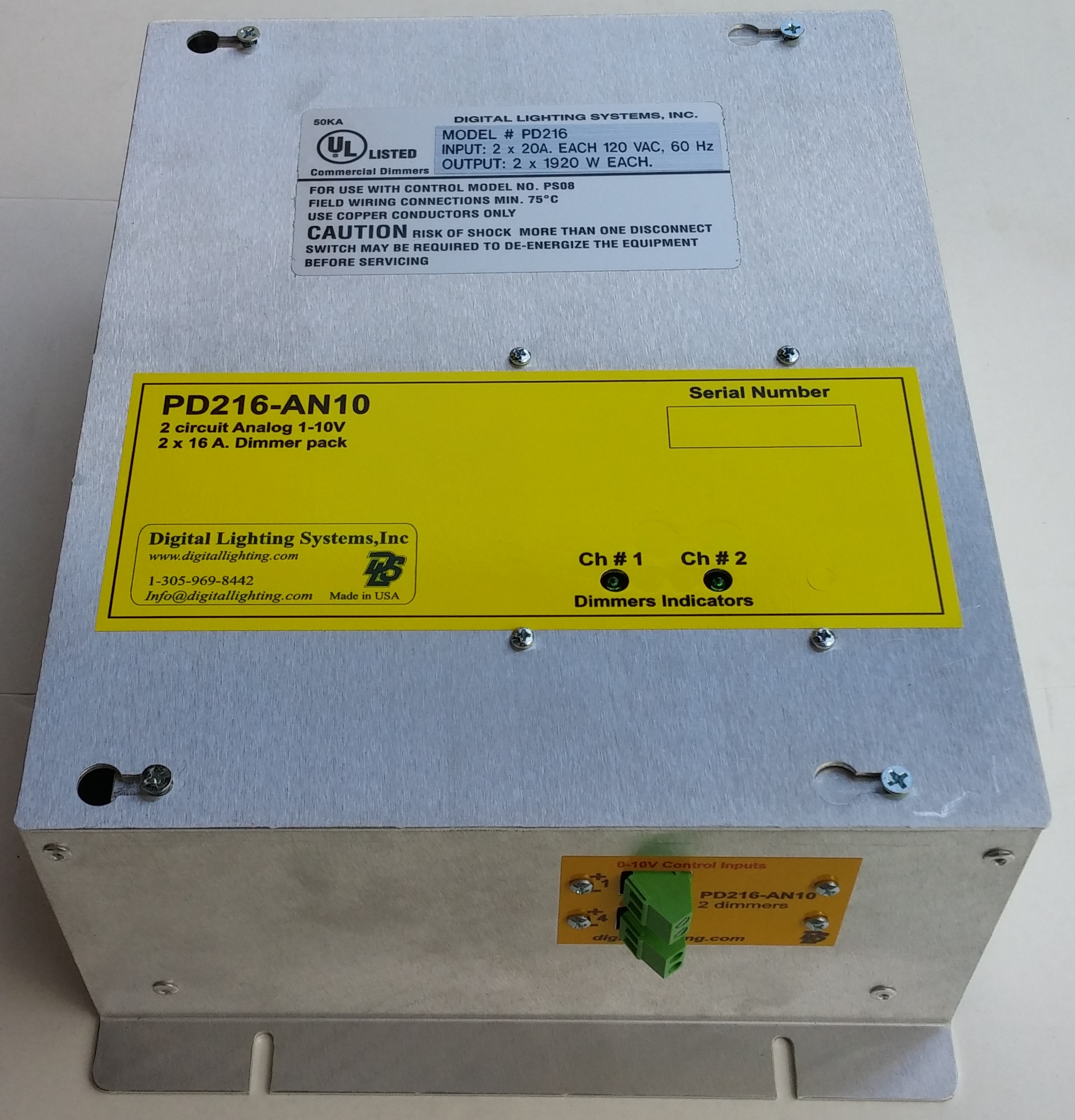

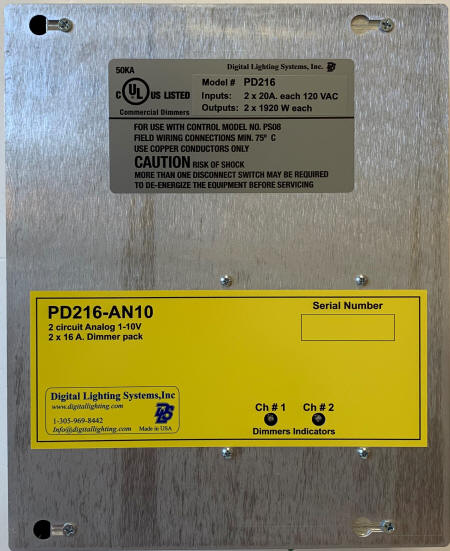

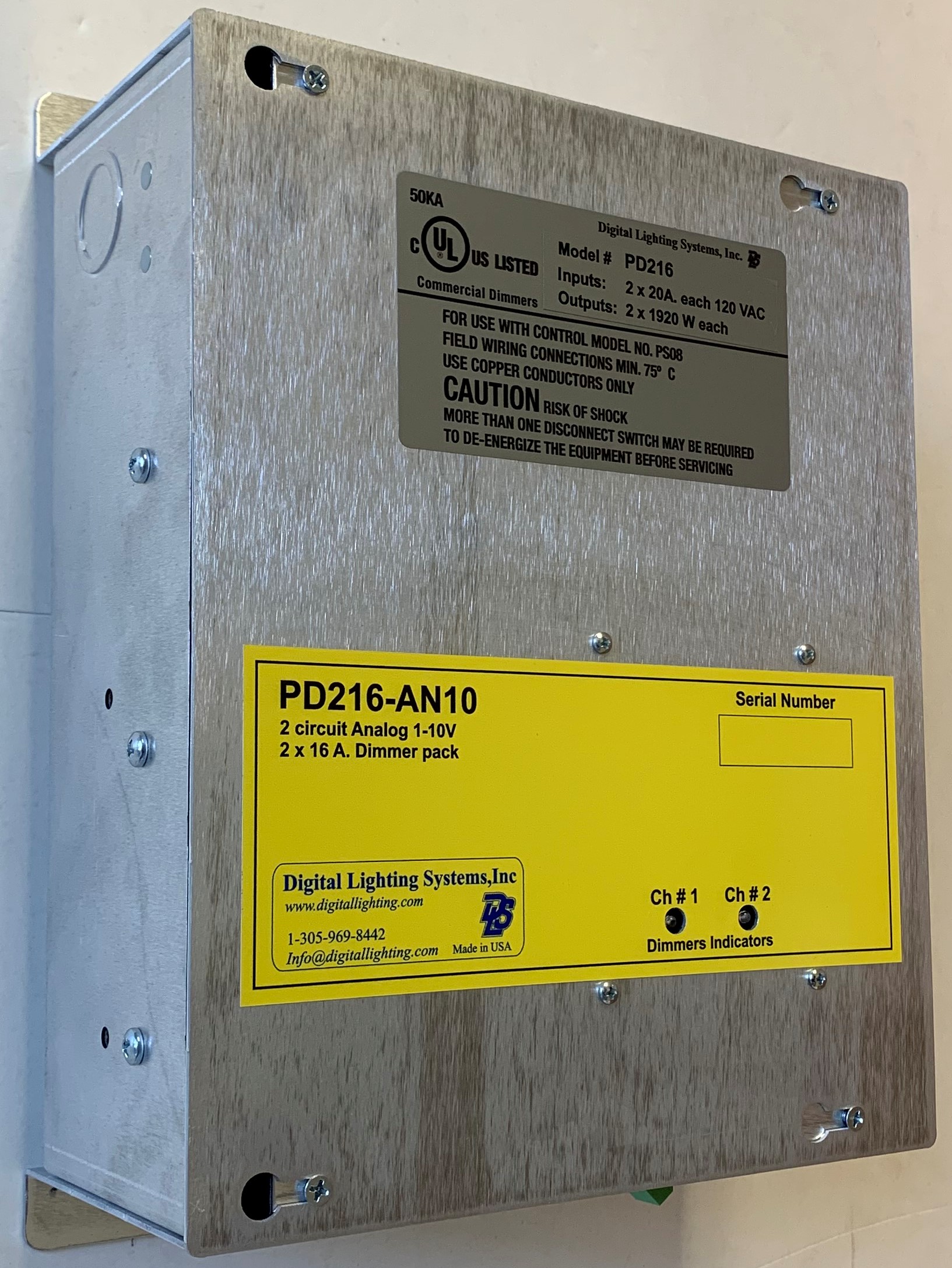

PD216-AN10:2 x 2000 W. dimmers @ 120 V; Analog 0-10V standard control Dimmer Pack

Digital Lighting Systems PD216-AN10 Dimmer pack is designed for architectural dimming from standard 0-10V wall dimmers or controllers

MAIN FEATURES

  • 2 channel x 2000 W Dimmer or switch pack.

  • Dimmer or Switch selection with adjustable Switch level.

  • Universal dimmers for triac dimmable  LED, Fluorescent, Low-Voltage Transformers.

  • Simple to Install and Operate.

  • Two Year Limited Warranty on Parts and Labor.

  • 120VAC, ( 220 VAC - 277 VAC ), 24V AC, & 12 V AC  versions.

  • Suitable for dimming Triac dimmable  L E D & CFL bulbs

      Made in the USA

PD216-AN10  USER MANUAL            PD216-AN10-277  USER MANUAL



PD216-AN10-120 ( 2 x 2000 Watts @ 120 VAC )  $475.00

PD216-AN10-277 ( 2 x 4400 Watts @ 277 VAC )  $548.00





Douglas Controls part numbers : DLS-22000-120 & DLS-24500-277



SPECIFICATIONS

  • Heavy-Duty Outputs, Dims 2 x 16 Amp. loads

  • ( 2 dimmers x 2000 W @ 120 V AC ).

  • Active DC component protection for Inductive Loads.

  • Suitable for all TRIAC dimmable loads including MLV & ELV (Magnetic Low Voltage & Electronic Low Voltage )

  • compatible with 0-10V analog lighting controllers & Energy Management systems.

  • Compact Size, 11.75" H x 8.30" W x 4.12" D Wall-Mount Aluminum Enclosure.

  • Available in 12, 24, 120 and ( 220 - 277 V AC ) Versions.



Available option for 3 wire dimming ballasts



PD216-AN10-3WB  USER MANUAL



PD216-AN10-3WB- 277 ( 220 to 277 VAC operation ) USER MANUAL
