    CF400  Auto Dimmer cross fader & chaser module for 6 to 24 VDC ( PWM Dimmers for LED & Direct Current Voltage )  AC voltage dimmers

The CF400 is a compact 4 channel crossfader ( auto dimmer ) and chaser module with 4 outputs rated up to 5 AMPS each with a maximum of 8 Amps total. It is designed for architectural,  lighting animation applications and RGB color mixing. The CF400 is supplied as a Printed Circuit Board Module for OEMs of power supplies and LED lighting fixtures to include in their products.

These PWM, Direct current voltage lighting dimmers and switches, are designed for the growing LED color mixing and dimming applications.

CF400: 4 channel cross fader / chaser Module; 8 Amps Maximum total @ 6 to 24 VDC       CF400  dimmers User manual
MAIN FEATURES
  • Compact 4-channel cross fader / chaser Module
  • PULSE WIDTH MODULATION ( PWM) DIMMERS
  • 15 patterns with automatic 16 patterns sequencers
  • Selectable 3 or 4 channels
  • Easy to use rotary rate and pattern selectors.
  • Simple to Install and Operate.
  • Two Year Limited Warranty on Parts and Labor.

Dimmer for L E D  and DC voltage Loads. Automatic dimmer for  RGB color mixing or  DC voltage loads

CF400 is sold as a Printed Circuit Board Module for installation within existing power supplies or other enclosures.                                          List price $85.00

CF45  CF400 in enclosure.

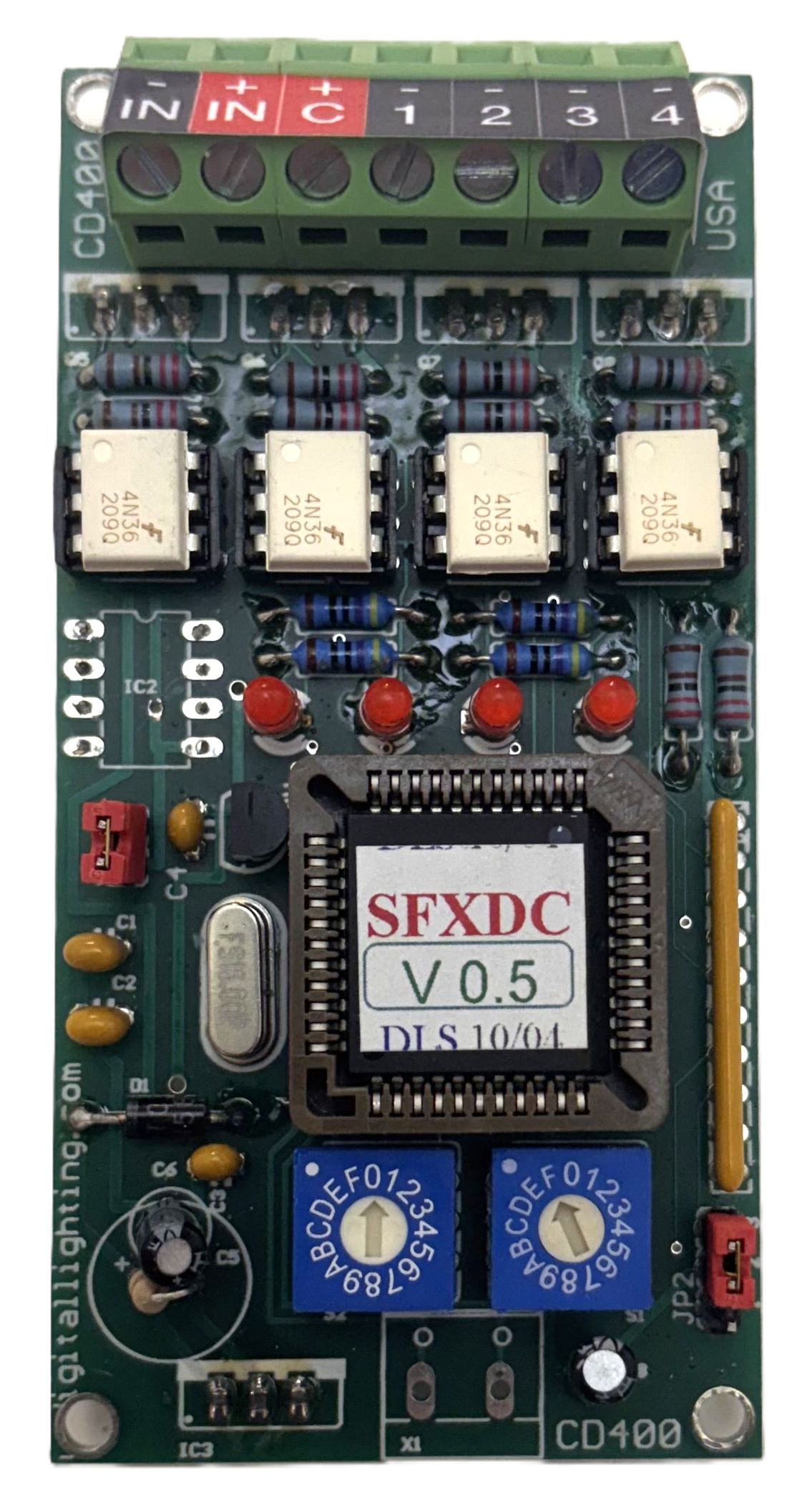

CF400 Front

CF400 Back

SPECIFICATIONS

  • 4 Dimmer outputs up to 5 AMPS maximum per output

  • TOTAL load for 4 outputs not to exceed 8 AMPS

  • Operates on voltage range : 6 VDC to 24 VDC

  • PULSE WIDTH MODULATION    ( PWM) DIMMERS.

  • Common Anode ( + ) , cathode (-) outputs.

  • Hexadecimal rotary speed and pattern selectors

  • screw terminals for  DATA.

  • screw terminals for inputs and outputs connections.

  • compact Size: 3.6"x1.9"x1.0" PCB with no enclosure.

  • Pulse width Modulation for dimming  L E D  loads



Made in USA

CF45  4 channel cross fader chaser ; CF400 installed in a surface mount aluminum enclosure         CF45 dimmer pack User Manual

MAIN FEATURES
  • Compact 4-channel cross fader / chaser Module
  • PULSE WIDTH MODULATION ( PWM) DIMMERS
  • 15 patterns with automatic 16 patterns sequencers
  • Selectable 3 or 4 channels
  • Easy to use rotary rate and pattern selectors.
  • Simple to Install and Operate.
  • Two Year Limited Warranty on Parts and Labor.

Dimmer for L E D  and DC voltage Loads.

Automatic dimmer for  RGB color mixing or  DC voltage loads



List price $98.00

SPECIFICATIONS

  • 4 Dimmer outputs up to 5 AMPS maximum per output

  • TOTAL load for 4 outputs not to exceed 8 AMPS

  • Operates on voltage range : 6 VDC to 24 VDC

  • PULSE WIDTH MODULATION ( PWM) DIMMERS.

  • Common POSITIVE ( + ) , NEGATIVE (-) outputs.

  • Hexadecimal rotary speed and pattern selectors

  • screw terminals for  DATA.

  • screw terminals for inputs and outputs connections.

  • compact Size: 4.5"x2.2"x1.25" surface mount aluminum enclosure.

  • Pulse width Modulation for dimming  L E D  loads







Made in USA
